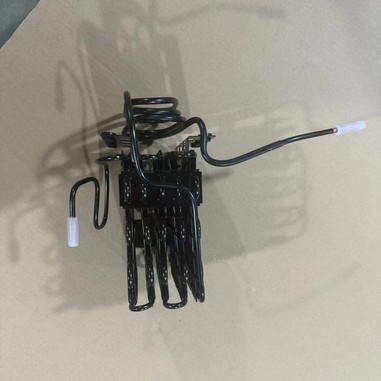

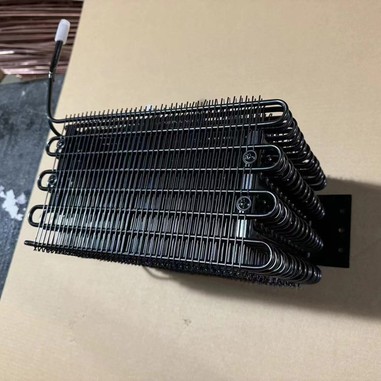

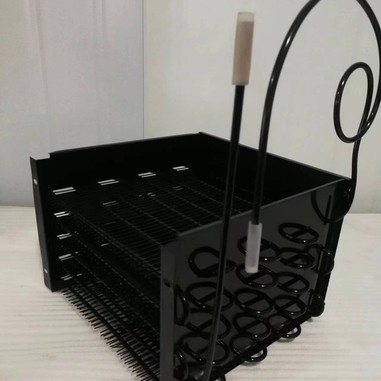

Wire Tube Condenser For Refrigeration
Wire Tube Condenser For Refrigeration
The utility model relates to a condenser with a wire tube structure design, which is mainly used in refrigeration equipment to condense refrigerant from gas to liquid through heat exchange and release heat at the same time.
one-stop solution
professional team
Support customization
Working principle
Choose the plan that suits you best.
The refrigerant is compressed into high temperature and high pressure gas in the compressor and enters the condenser.
01
In the condenser, the refrigerant gas exchanges heat with the air or cooling water outside the tube through the flow in the copper tube.
02
With the release of heat, the refrigerant gas gradually condenses into a liquid state and releases a large amount of latent heat.
03
The condensed liquid refrigerant enters the evaporator for evaporation and heat absorption after pressure reduction by throttle valve to complete the refrigeration cycle.
04
Features of Wire Tube Condenser
Wire Tubes
Consists of refrigerant flowing through coiled or straight tubes made of metal, usually copper, which are surrounded by fins.
Fins
Metal fins are attached to the tubes to increase the surface area for heat dissipation.
Materials
Typically made from corrosion-resistant materials like copper or aluminum for tubes and fins.
Mounting
Designed for mounting in various orientations, often with brackets or supports.
