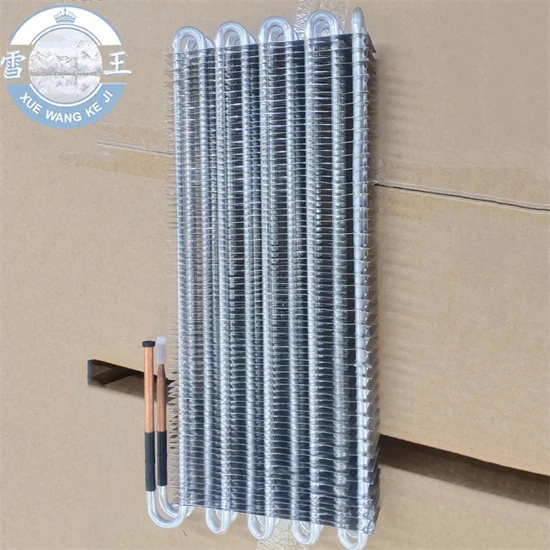

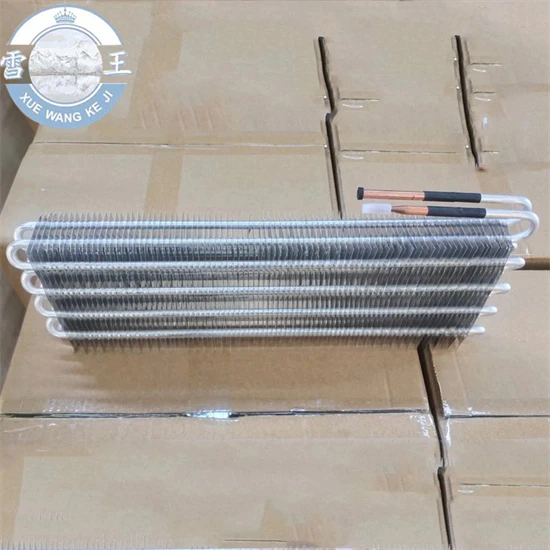

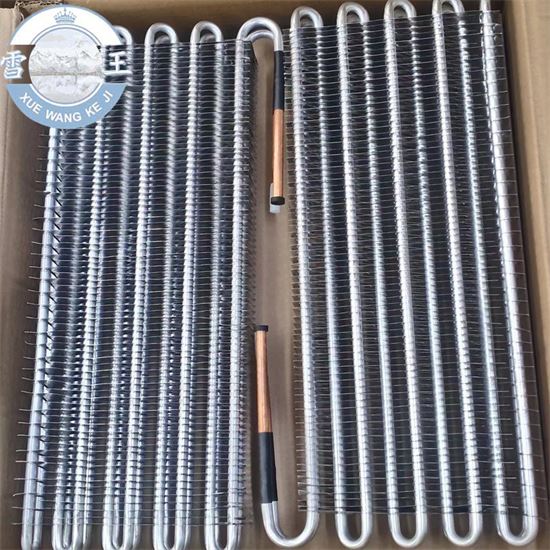

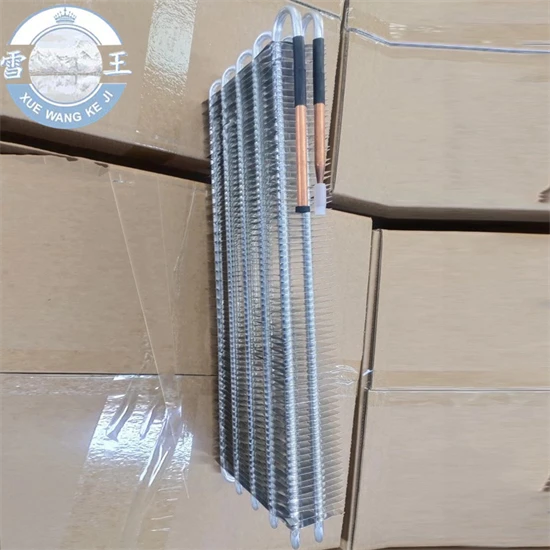

Aluminum Tube Evaporator

Aluminum Tube Evaporator

Aluminum Tube Evaporator 1.Lightweight and corrosion-resistant: Aluminum has a low density and excellent corrosion resistance, which gives the aluminum tube evaporator an advantage in weight and lifespan. 2.High heat exchange efficiency: By optimizing the fin structure and manufacturing process,...
Send Inquiry
Eva P38518
Aluminum Tube Evaporator



1.Lightweight and corrosion-resistant: Aluminum has a low density and excellent corrosion resistance, which gives the aluminum tube evaporator an advantage in weight and lifespan.

2.High heat exchange efficiency: By optimizing the fin structure and manufacturing process, the aluminum tube evaporator can achieve efficient heat exchange, thus improving the performance of the refriger system.
3.Environmentally friendly and energy-saving: Aluminum has good recyclability, and the aluminum tube evaporator pays attention to energy saving and consumption reduction in the design and process, which meets the environmental requirements of modern refrigeration systems.




Products Data





The main raw materials

Brass, aluminum tubes, aluminum foil

Structure form

Brass, aluminum tubes into the fin expansion

Heat exchange mode and performance

Refrigerant evaporation tube, fin, air-cooled, freezing and defrosting type finned evaporator, can satisfy the frozen at - 18
degrees cold - 2 ~ 4, condenser will be thermally induced heat distributed all

Surface treatment

Anodic oxidation: (aluminum, aluminum fin) dip varnish, paint electrophoresis (copper tube aluminum fin)

Internal quality

No leakage, can meet the requirements of CFC and CFC refrigerant internal cleanliness requirements

Miscellaneous

Mainly for freezing type, type and size is not restricted



Structure and Characteristics



Eva P39415

Aluminum tube

As the main part of the evapor, the aluminum tube has excellent thermal conductivity and corrosion resistance.

Eva P39719

Fins

Fins are usually in close contact with the aluminum tube, and they increase the heat exchange by expanding the heat dissipation area. The fin material is also mostly aluminum or aluminum alloy.

Eva P39960

Other components

Such as manifolds, supports, etc., which used to connect and support the aluminum tube and fin structure.

Our Factory & Equipment





IMG20231007155737 IMG20231007094112 IMG20231007094351
